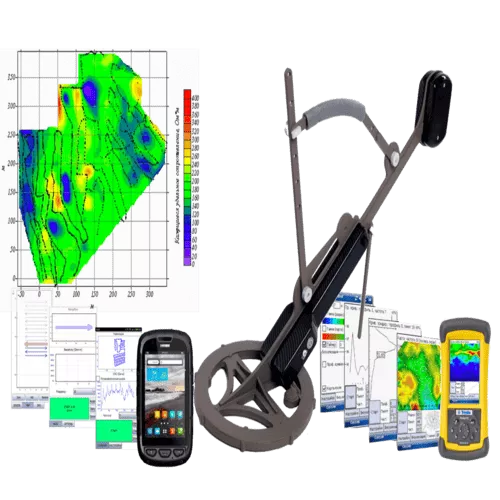

GEOVISER Compact Equipment For Electromagnetic Profiling

Multi-purpose compact profiler "Geovizer" implements the method of induction multi-frequency mapping, and allows you to solve the problem of fast and non-contact research of the earth.

FEATURES
12.5 - 111kHz- FREQUENCY RANGE

0.3 - 0.9 Sec- MEASUREMENT TIME

60W- GENERATOR POWER

4Kg- INSTRUMENT WEIGHT

TECHNICAL SPECIFICATIONS (GEOVISER)
Frequency range: 12.5-111 kHz;
Transmitter power (impulse): 60 W;
Receiver sensitivity: 1 mV;
Scan time for a single point at 3 freqs: 2 sec (or any set from 1-14 deferent frequencies);
Noise level: 50 nV;
Dimensions: 90x75x25 cm
Battery operation time: 8 hours;
Weight: 5 kg.
